Main Spindle: 6,000 RPM
Spindle Motor: 20 HP (15 kW)
Spindle Torque: 93.7 ft-lbs (127 N·m)

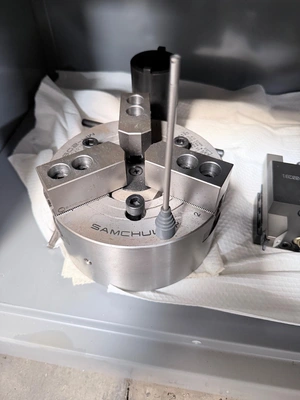

Chuck Size: 6"
Bar Capacity: 2.0" (51 mm)
Axes: 4-Axis (X, Y, Z, C)
X-Axis Travel: 8.1" (205 mm)
Y-Axis Travel: 4.1" (105 mm / ±52.5 mm)
Z-Axis Travel: 22.0" (560 mm)
Rapid Traverse Rate (X/Z): 1,181 / 1,417 IPM (30 / 36 m/min)

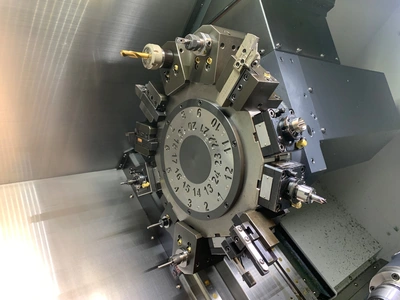

Turret Capacity: 12 Stations
Turret Type: BMT45
Live Tooling Speed: 6,000 RPM
Live Tool Motor: 5 HP (3.7 kW)

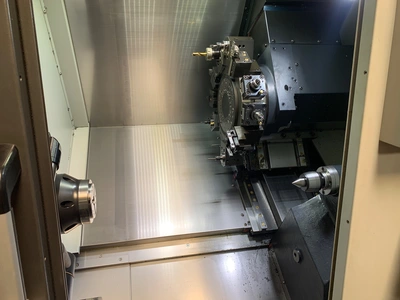

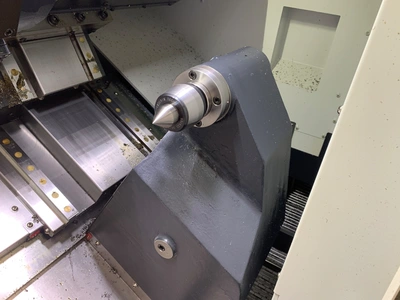

Tailstock Type: Programmable Hydraulic CNC Tailstock
Tailstock Travel: 22.0" (560 mm)
Tailstock Quill Diameter: 2.6" (65 mm)
Tailstock Quill Travel: 3.1" (80 mm)
Tailstock Center Taper: MT#4

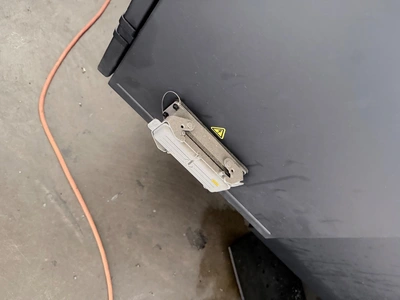

Tool Presetter: Automatic Tool Setter (Removable/Pivot Type Probe)
Bed Design: 30° Slant Bed Cast Iron
Guideways: Roller-Type Linear Motion Guides
Lubrication: Automated Grease-Type System
Machine Weight: 8,500 lbs (3,850 kg)
Machine Dimensions (L x W x H): 113.4" x 76.0" x 67.5" (2,880 x 1,920 x 1,710 mm)

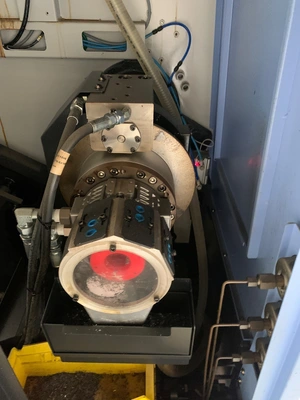

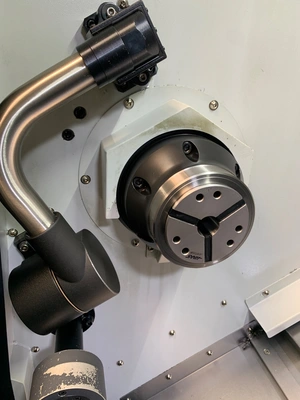

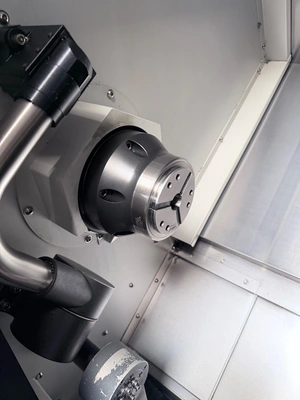

Royal Quick-Grip Accu-Length CNC Collet Chuck (QG-65, A2-5 Spindle Nose)
*Collets not included in sale.

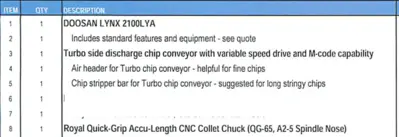

Turbo side discharge chip conveyor with variable speed drive and M-code capability
Toolholder Package (NOT all toolholders shown are included in the sale)
This equipment has been sold. Similar equipment available now is shown below.
