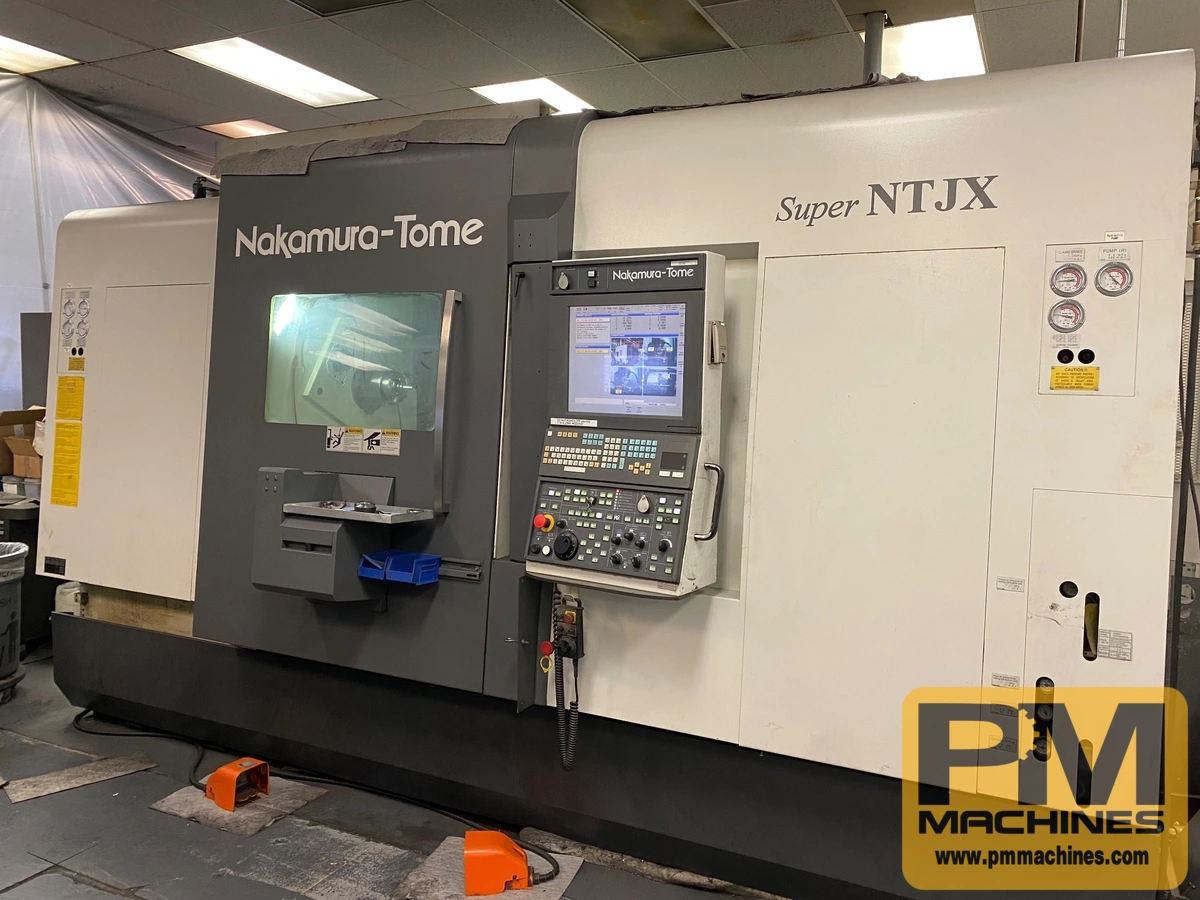

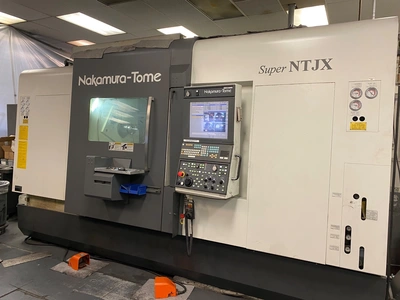

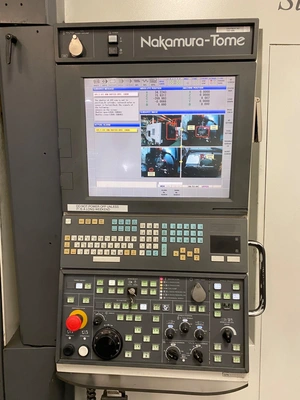

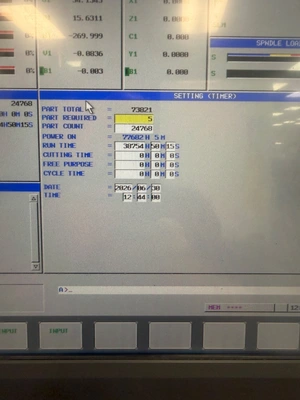

2011 NAKAMURA-TOME Super NTJX

Capacity
• Maximum Turning Diameter: 9.65" (245 mm)
• Maximum Turning Length: 42.9" (1,090 mm)
• Distance Between Spindle Noses: 8.3" - 50.8" (210 - 1,290 mm)
• Bar Capacity: 2.01" (51 mm)
• Optional Bar Capacity: 2.56" (65 mm)
• Chuck Size: 6.7" (170 mm)

Axis Travels
• X1-Axis Travel: 17.9" (455 mm)
• X2-Axis Travel: 8.76" (222.5 mm)
• Z1-Axis Travel: 42.9" (1,090 mm)
• Z2-Axis Travel: 39.6" (1,005 mm)
• B2-Axis Travel: 39.7" (1,008 mm)
• Y1-Axis Travel: ±2.76" (±70 mm)
• Y2-Axis Travel: +0.79" / -1.97" (+20 / -50 mm)

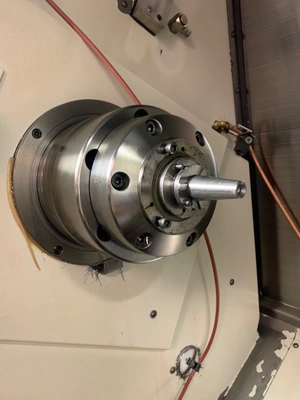

Main Spindles
• Maximum Spindle Speed: 6,000 RPM
• Optional Left Spindle Speed: 4,500 RPM
• Left Spindle Motor: 20 HP / 15 HP (15 / 11 kW)
• Right Spindle Motor: 15 HP / 10 HP (11 / 7.5 kW)

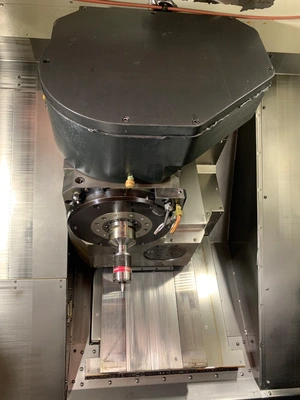

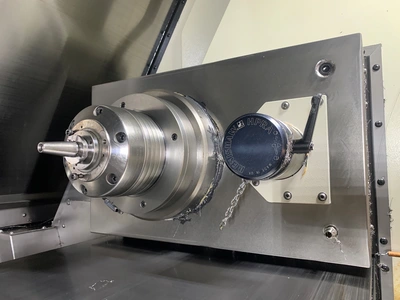

Milling Spindle
• Maximum Spindle Speed: 8,000 RPM
• Optional Spindle Speed: 12,000 RPM
• Spindle Motor: 10 HP / 5 HP (7.5 / 3.7 kW)
• Tool Interface: KM63 / Capto C6
• Optional Tool Interface: HSK-A63

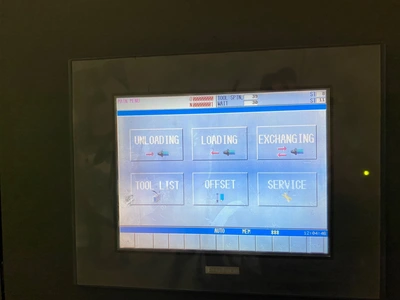

• Automatic Tool Changer Capacity: 40 Tools
• Optional ATC Capacity: 80 or 120 Tools
• Maximum Tool Diameter: 2.76" (70 mm)
• Maximum Tool Diameter (Without Adjacent Tools): 3.54" (90 mm)
• Maximum Tool Length: 11.0" (280 mm)
• Maximum Tool Weight: 17.6 lbs (8 kg)
• B-Axis Travel: ±115° (230° Total)

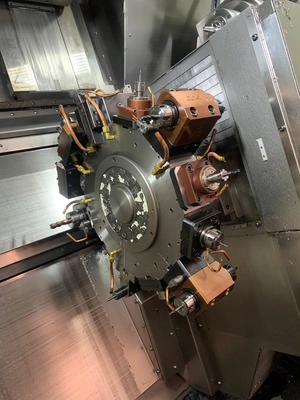

Lower Turret
• 24-Station Dodecagonal Turret
• Live Tool Speed: 6,000 RPM
• Live Tool Motor: 7.4 HP / 5 HP (5.5 / 3.7 kW)
• Live Tool Torque: 17.7 ft-lbs (24 Nm)
• Driven Tool Stations: 12

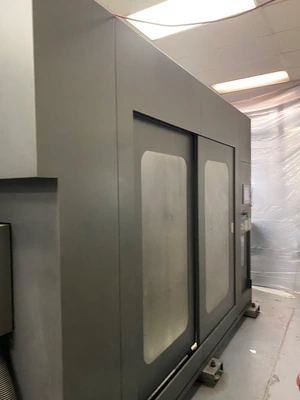

Machine Dimensions
• Footprint (L × W × H): 185.7" × 115.0" × 96.3" (4,718 × 2,922 × 2,445 mm)
• Machine Weight: 30,865 lbs (14,000 kg)

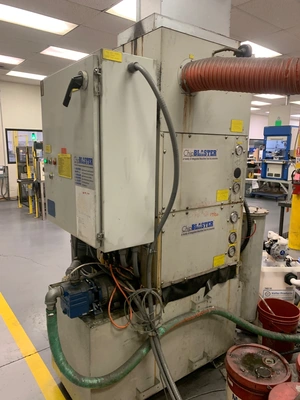

Features

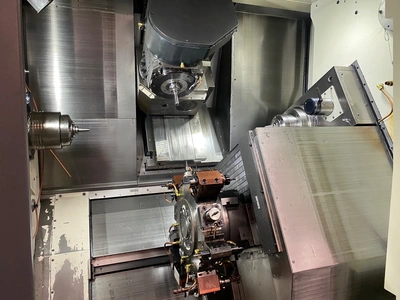

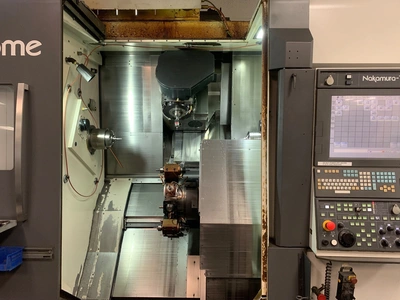

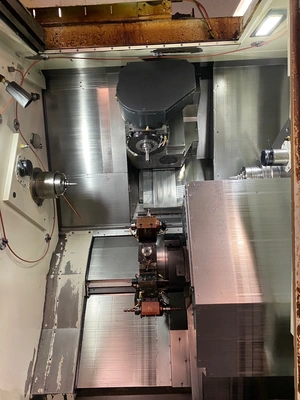

• Twin-Spindle, Twin-Turret Multitasking Turning Center
• Full B-Axis Milling Spindle
• Simultaneous Turning & Milling Capability
• Dual Y-Axis Configuration
• 40-Tool Automatic Tool Changer (80 & 120 Tool Optional)
• Capto C6 Tooling System
