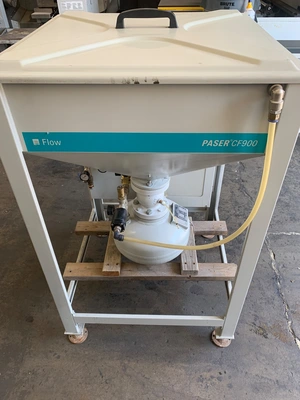

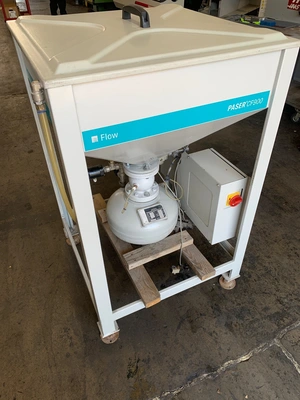

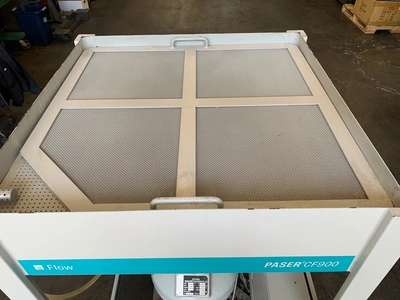

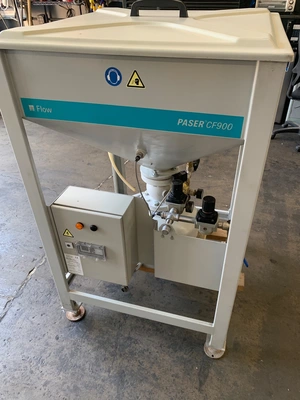

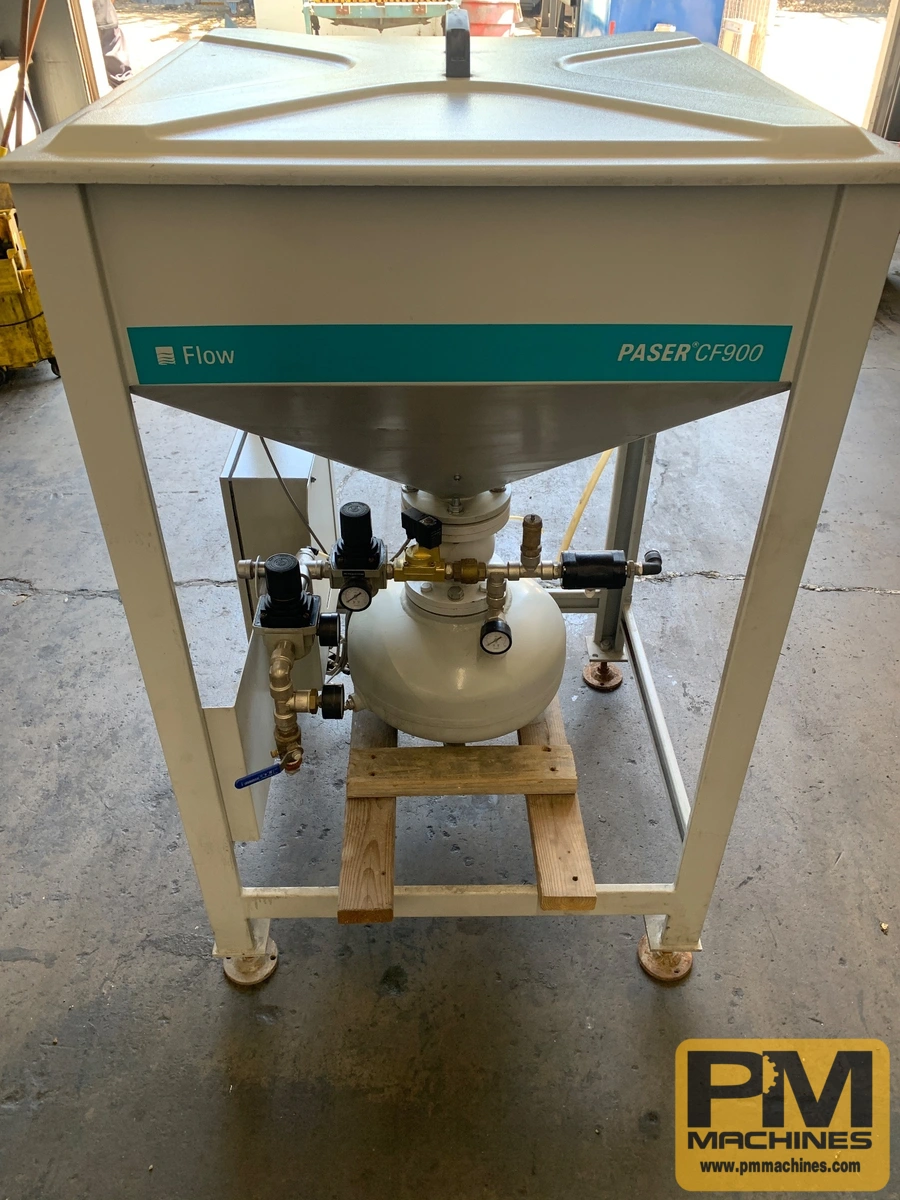

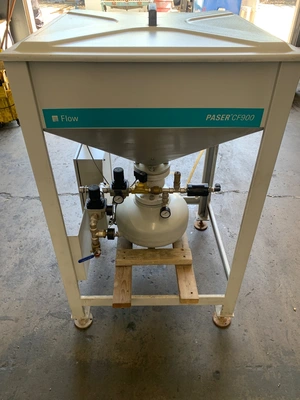

2017 FLOW PASER CF900 - Abrasive Delivery System (Hopper)

Specifications

Dimensions (L × W × H): 858 × 858 × 1,392 mm (33.8 × 33.8 × 54.8 in.)
Empty Weight: 112 kg (247 lb)
Full Weight: 537 kg (1,184 lb)
Abrasive Capacity: 425 kg (937 lb)

Air Requirements
Customer air supply with lockout/tagout capability
Minimum air supply line size: 20 mm (3/4 in.)
Operating pressure: 5.5 bar (80 psi)
Operating air consumption: 566 lpm (20 SCFM)
Surge pressure: 5.5–6.5 bar (80–94 psi)
Surge air consumption: 2,250 lpm (80 SCFM)
Maximum air consumption varies based on abrasive media and flow rate
Clean, dry, oil-free compressed air recommended

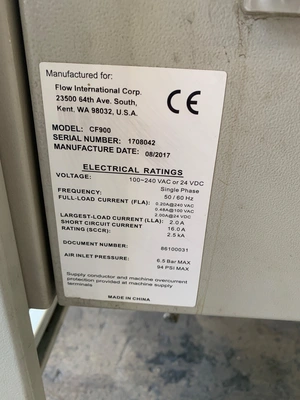

Electrical Requirements
Input Power: 100–240 VAC, 50/60 Hz, or 24 VDC
Full Load Current:
0.20 A @ 240 VAC
0.48 A @ 100 VAC
2.0 A @ 24 VDC
Largest Load Current: 2.0 A
SCCR Rating: 2.5 kA
Operating Environment
Operating Temperature: 0°C–55°C (32°F–131°F)
Relative Humidity: 5%–95%
Elevation: Up to 2,500 m (8,200 ft) above sea level
Installation Requirements
Level, solid floor required
Minimum service clearance: 1 m (3 ft) on front and sides

Machine Footprint: 33.8" × 33.8"
Overall Height: 54.8"
Loaded Weight: 1,184 lb
Abrasive Capacity: 937 lb
Air Requirement: 80 PSI @ 20 SCFM (80 SCFM surge)
Power Requirement: 100–240 VAC, 50/60 Hz or 24 VDC
