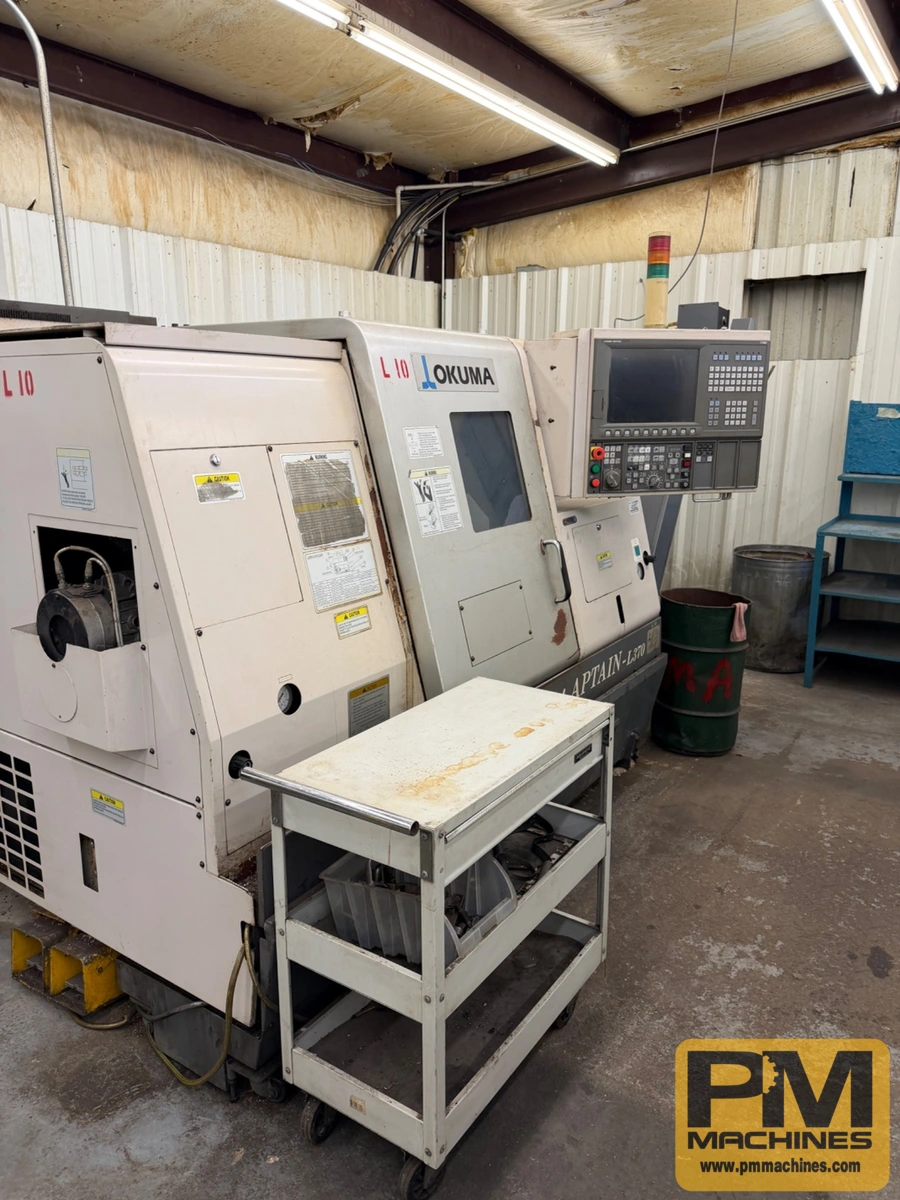

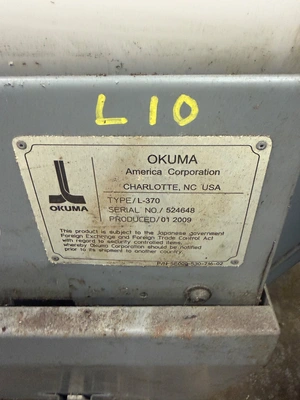

2008 OKUMA CAPTAIN L370 CNC LATHE

Capacity
Max Turning Diameter: 14.56–14.57"

Max Turning Length: 20.47"

Swing Over Bed: 20.86–21.65"

Swing Over Slide: 15.78"

Distance Between Centers: 20–22.29"

Spindle
Spindle Speed: 4500 RPM

Spindle Motor: 20 HP

Spindle Bore: 2.44–3.00"

Spindle Nose: A2‑6

Chuck / Bar

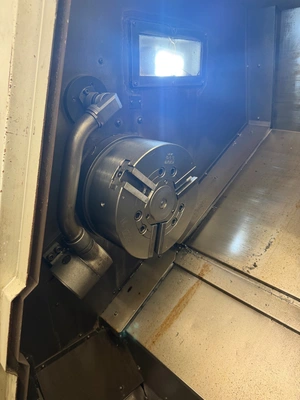

Chuck Size: 8"

Bar Capacity: 2.05–2.44"

Axes
X‑Axis Travel: 10.23"

Z‑Axis Travel: 20.47"

Rapids:

X: 787 IPM

Z: 984 IPM

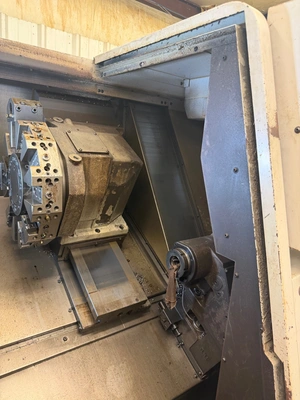

Turret
Stations: 12

Index Time: 0.5 sec

Tailstock
Body Travel: 14.3"

Quill Diameter: 3.54"

Quill Stroke: 3.93"

Taper: MT‑4

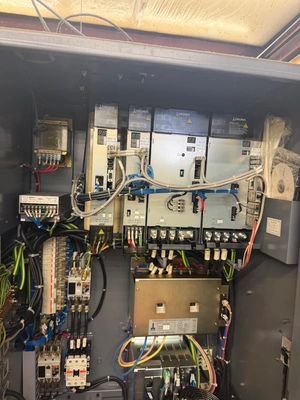

Control

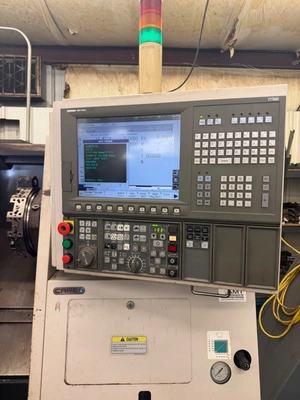

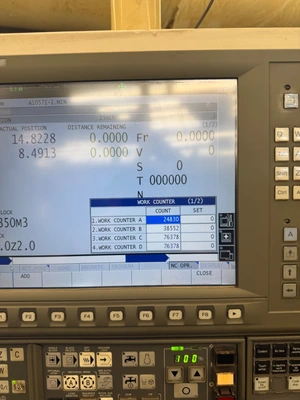

OSP‑P100 / P200L / E100L depending on year

Machine Size / Weight
Dimensions: approx. 110" × 68" × 80"

Weight: ~9000 lbs
