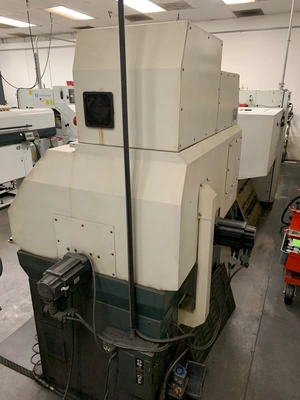

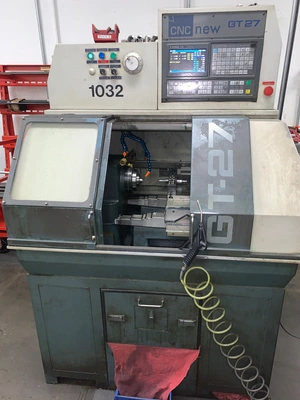

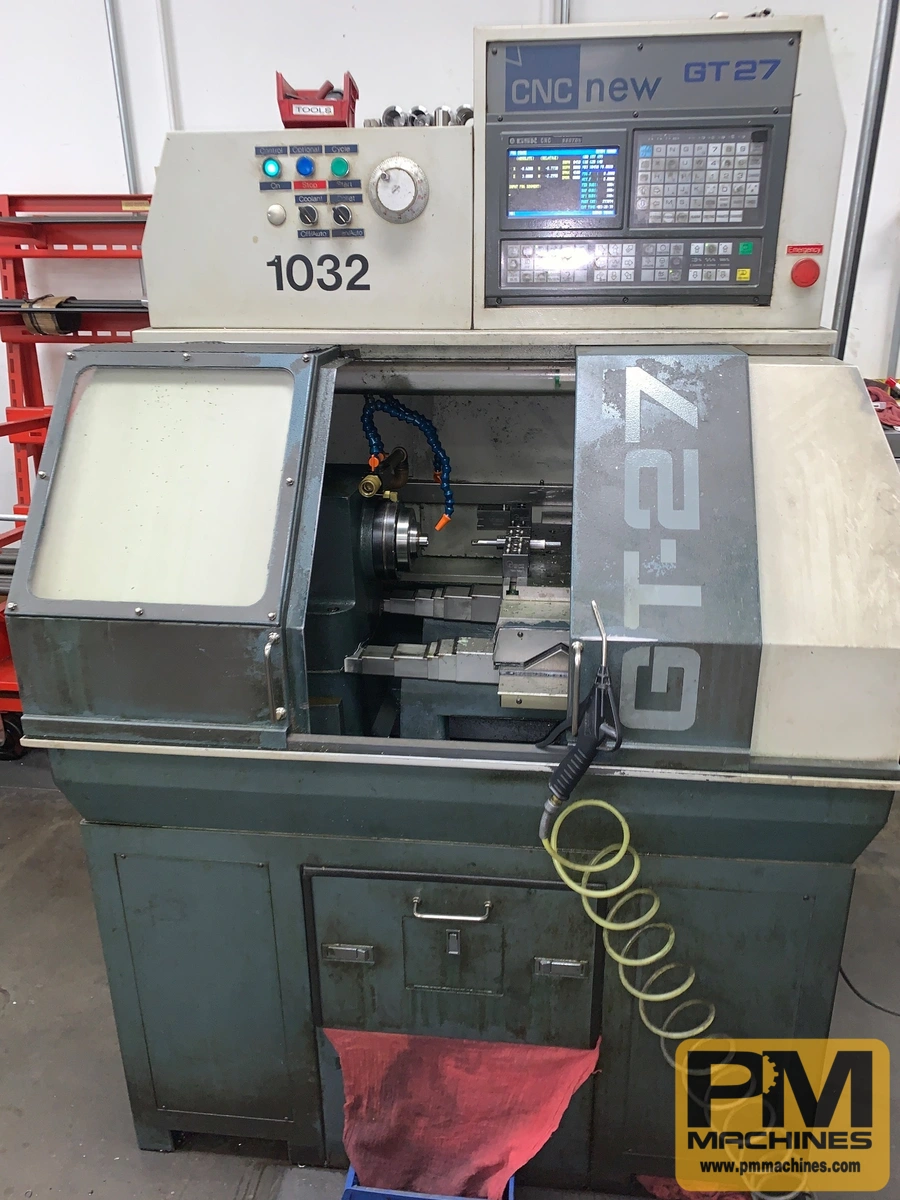

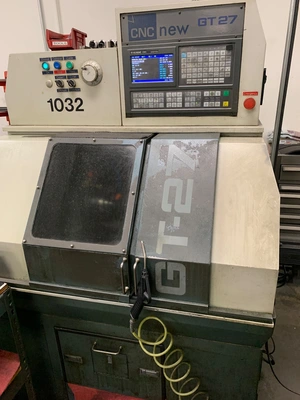

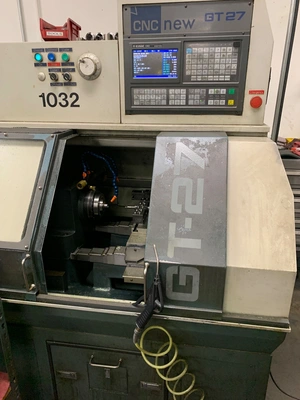

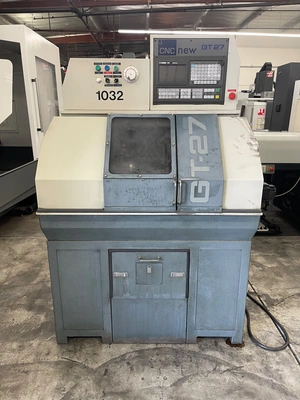

2012 CNC NEW GT 27 Rebuilt

X‑Axis Travel: 11.75"
Z‑Axis Travel: 7.5"
Spindle Speed: 0–4,500 RPM (programmable precision spindle)
Spindle Motor: 5 HP
Spindle Bore: 1.275"
Spindle Taper / Collet: 5C
Max Bar Size: 1‑1/16"
Collet Closer: 1,900 lb pull force, 5/16" stroke
Drive System Closed‑loop 2‑axis servo package 20A peak / 10A continuous
120 oz‑in liquid‑sealed axis motors
1000‑line encoder + tachometer
Built‑in manual pulse generator
Feeds & Rapids
Feed Rate: 200 IPM
Rapid Traverse: 600 IPM
Axis Thrust: 600 lb
Coolant & Pneumatics
Coolant System: 15‑gallon, high‑volume, high‑pressure (M‑function controlled)
Coolant Compatibility: Water‑ or oil‑based
Air Requirements: 80 PSI @ 35 CFM (clean, dry air)

Machine Size & Weight
Weight: 2,800 lb
Floor Space: 48" × 36" × 70"
