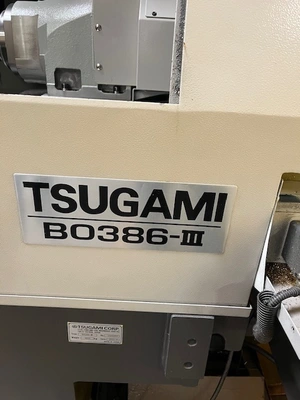

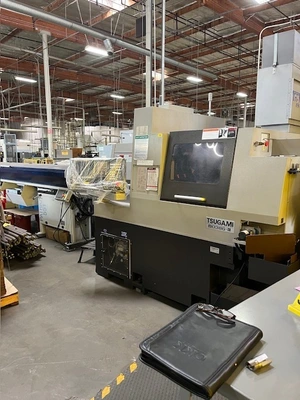

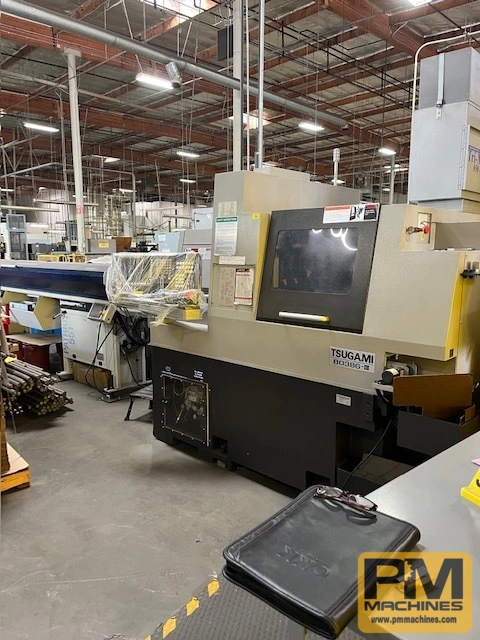

2022 Tsugami B0386-III Swiss Lathe with Edge Patriot 551 Barfeed,
ConditionUsed
1 available
Low Hours Run time 590 hours, Cut time 426 hours, Fanuc 32i Control and Loaded with Options.
Maximum Bar Stock 38 mm / 1.5″
# Axes 6
Sliding Headstock / Guide Bushing YES
CONVERTIBLE: Run w/o Guide Bushing (chucker) YES
Max Headstock Stroke w/ Guide Bushing 320 mm / 12.6”
Max Headstock Stroke w/o Guide Bushing 70 mm / 2.75”
# Tool Positions (std / max) 32/ 42
# Live Tool Positions (std / max) 15 / 26
Control FANUC 32i-B
Main Spindle Speed 200 – 6,000 rpm

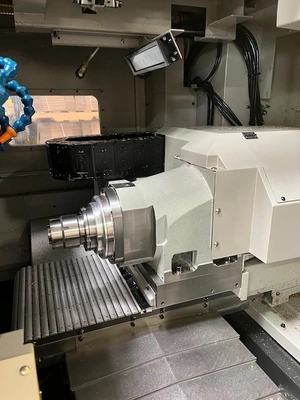

Sub Spindle Speed 200 – 7,000 rpm
Live Tool Speed 6,000 rpm
Main Spindle Motor 7.5 / 11 kW
Weight 4,850 kg / 10,694 lbs.
Footprint: W x D x H 2,240 x 1,515 x 2,050 mm 88″ x 60″ x 81″

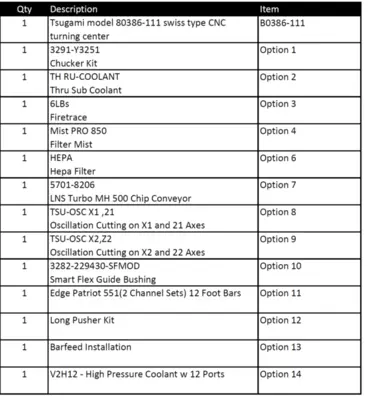

Through Coolant Sub
6 lbs Firetrace

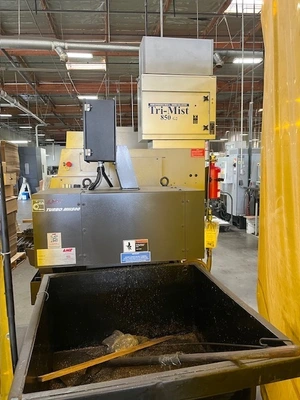

Mist Pro 850 Filter Mist Collector
Hepa Filter
LNS Turbo MH 500 Chip Conveyor
Oscillation Cutting On X1 and Z1 Axes
Oscillation Cutting On X2 and Z2 Axes
SFMOD Smart Flex Guide Bushing

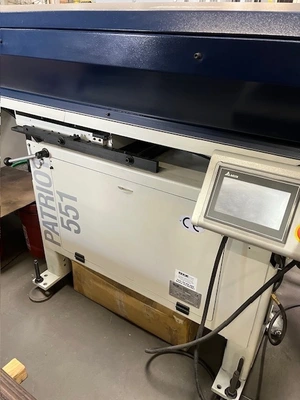

Edge Patriot 55 12 Foot Barfeed (2 Channel Sets)
Long Pusher Kit

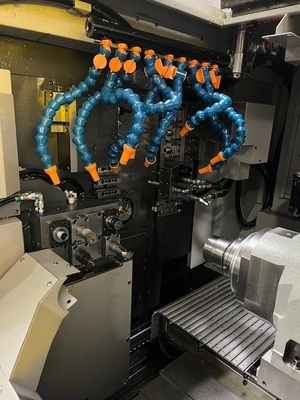

High Pressure Coolant with 12 Ports
Misc Tooling
