| Swing | 640 mm | 25.197" |
| Machining Length | 1,070 mm | 42.126" |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 117 mm | 4.6063" |
| Power | 26 kW | 34.9 hp |
| Max RPM | 250 RPM | 250 RPM |
| Turning Dia | 640 mm | 25.197" |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |

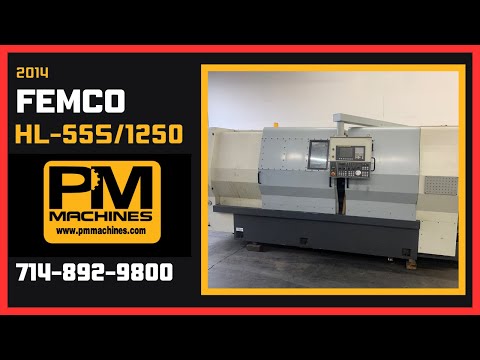

Catalog-Level Specs for FEMCO HL-55S/1250 (2014)
📏 Capacity & Travel
• Max Turning Diameter: ~22"
• Max Turning Length: ~49"
• Swing Over Bed: ~27"
• Distance Between Centers: 1250 mm (approx. 49.2")
⚙️ Spindle
• Spindle Bore: ~4.06"
• Spindle Speed: Up to 2,500 RPM
• Spindle Motor: ~30 HP
🔧 Turret & Tooling
• Turret Type: 12-station
• Tooling System: VDI or bolt-on (varies by config)
🧠 Control System
• CNC Control: Fanuc 0i-TD (common for this model/year)
🚀 Features & Options
• Programmable tailstock
• Chip conveyor
• Hydraulic chuck
• Coolant system
• Rigid tapping
*These specs may vary slightly depending on the exact configuration, verify to ensure they are correct.
Tailstock (on pallet)
15" Chuck
Chip conveyor
