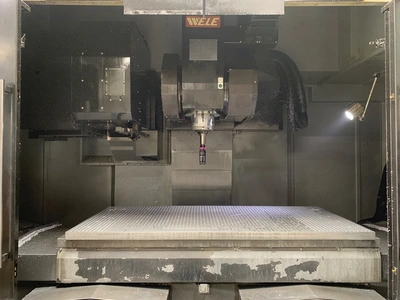

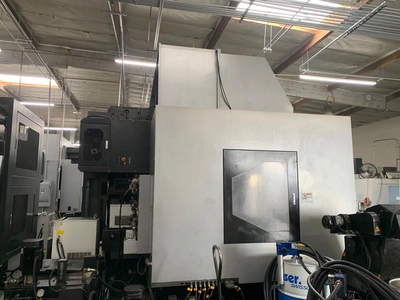

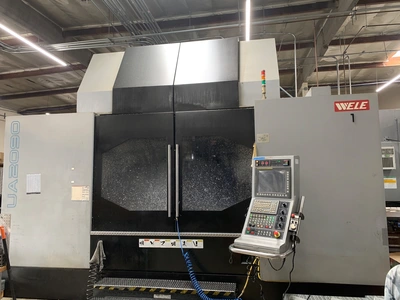

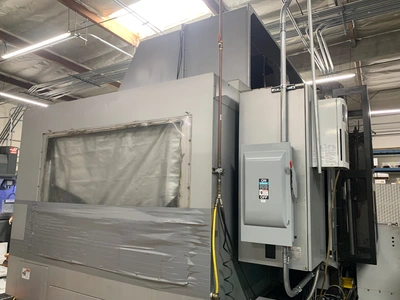

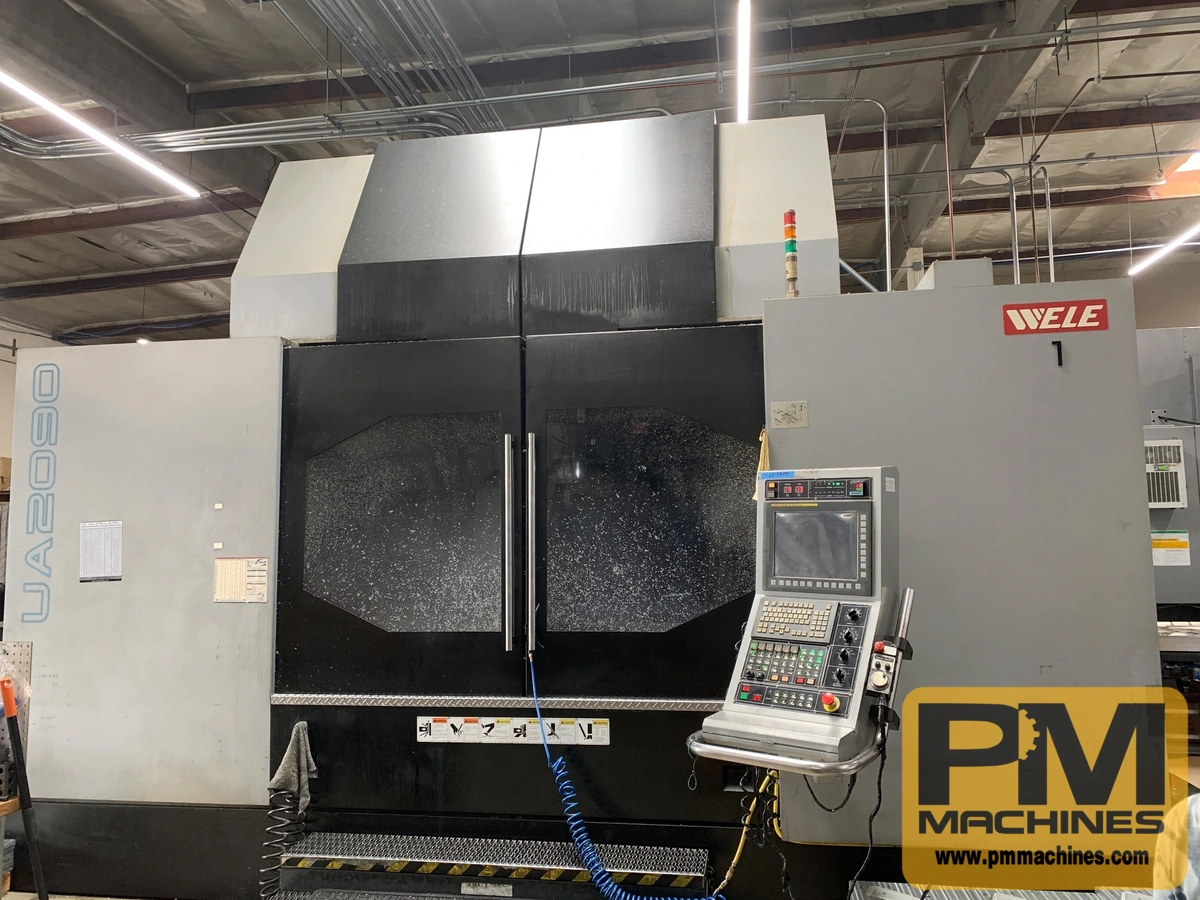

Toyoda Wele UA-2090 5 Axis Machining Center

SPECIFICATIONS:

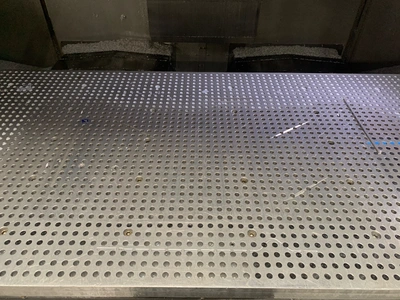

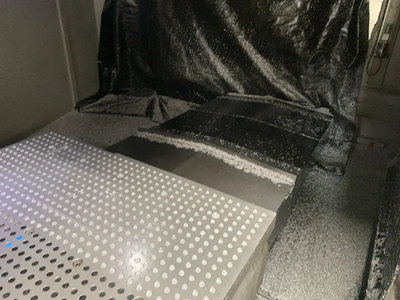

CLAMPING AREA ........................84.6" X 35.4"
X-AXIS TRAVEL (TABLE MOVEMENT)..........78.7"
Y-AXIS TRAVEL (TABLE MOVEMENT)..........35.4"
Z-AXIS TRAVEL (HEADSTOCK MOVEMENT)......27.5"
DISTANCE FROM TABLE TOP TO
SPINDLE FACE IN VERTICAL POSITION ......3.1" TO 30.7"
A-AXIS SWIVELING RANGE................± 40°
B-AXIS ROTATING RANGE (TABLE).........± 40°
MAXIMUM TABLE LOAD......................4,850 LB
SPINDLE DRIVE MOTOR ....................40 HP
SPINDLE OUTPUT TORQUE ..................811 FT-LB
SPINDLE TAPER...........................HSK63A TAPER
SPINDLE SPEED ..........................12,000 RPM DIRECT DRIVE
SPINDLE TYPE............................DIRECT DRIVE
RAPID FEEDRATE (X AND Y AXES)...........944 IPM
RAPID FEEDRATE (Z AXIS).................708 IPM
MAXIMUM CUTTING FEEDRATE................394 IPM
TOOL STORAGE CAPACITY...................48 ATC
STANDARD FLOOR SPACE....................209" X 130" X 157"
