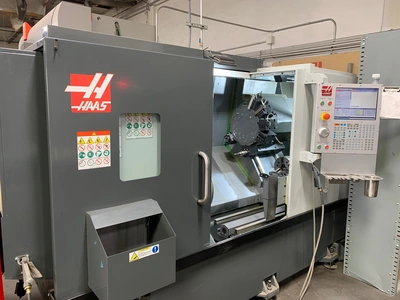

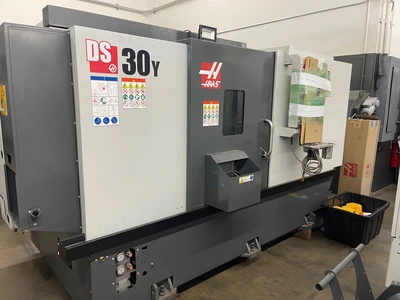

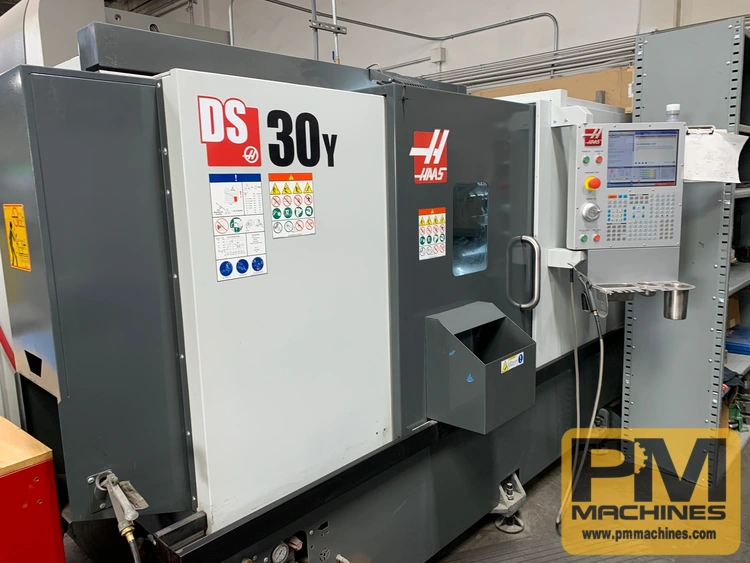

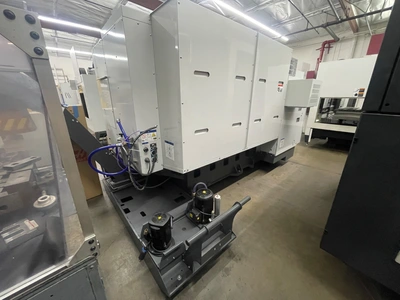

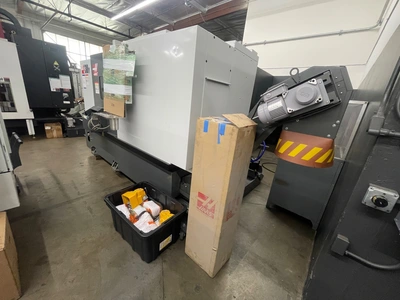

2023 HAAS DS-30Y CNC LATHE

CAPACITIES S.A.E METRIC

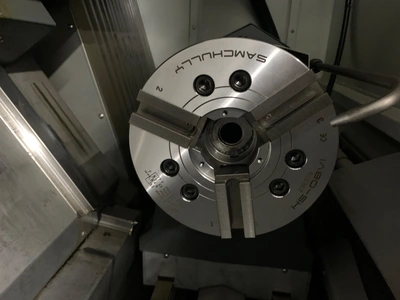

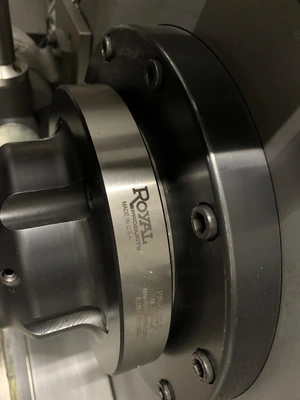

Chuck Size 10.0 in 254 mm
Max Part Swing 21.0 in 533 mm
Max Cutting Diameter (with BMT65 turret) 13.75 in 349 mm
Max Cutting Length (varies with workholding) 32.5 in 826 mm
Bar Capacity 3.00 in 76 mm
Between Centers 32.5 in 826 mm
TRAVELS S.A.E METRIC
X Axis 9.40 in 239 mm
Y Axis ± 2.0 in ± 51 mm
Z Axis 32.50 in 826 mm

FEEDRATES S.A.E METRIC
Rapids on X 472 ipm 12.0 m/min
Rapids on Y 472 ipm 12.0 m/min
Rapids on Z 945 ipm 24.0 m/min

AXIS MOTORS S.A.E METRIC
Max Thrust X 4100 lbf 18238 N
Max Thrust Y 2300 lbf 10231 N
Max Thrust Z 5100 lbf 22686 N

SPINDLE S.A.E METRIC

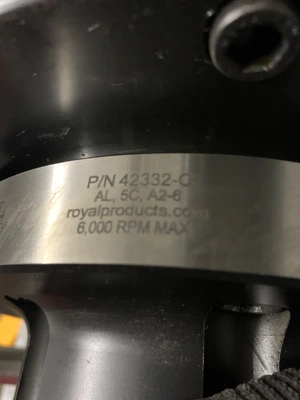

Spindle Nose A2-6 A2-6
Drive System Direct Speed, Belt Drive Direct Speed, Belt Drive
Max Rating 30.0 hp 22.4 kW
Max Speed 4500 rpm 4500 rpm
Max Torque 275.0 ft-lbf @ 500 rpm 373.0 Nm @ 500 rpm
Draw Tube Bore ø 3.0 in 76 mm
Spindle Bore ø 3.50 in 88.9 mm

MAIN SPINDLE C AXIS S.A.E METRIC
Max Speed 60 rpm 60 rpm
Max Rating 5.0 hp 3.7 kW
Positioning (±) 0.01 ° 0.01 °
Brake Diameter 13.9 in 353 mm
Brake Holding Torque 250 ft-lbf 339 Nm
Control Type Interpolated Motion and Positioning Interpolated Motion and
Positioning

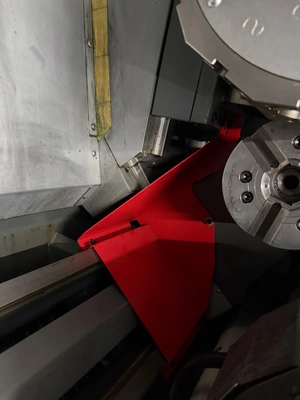

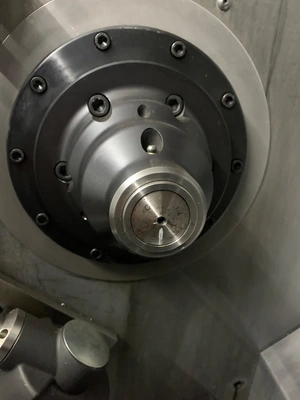

SECONDARY SPINDLE S.A.E METRIC

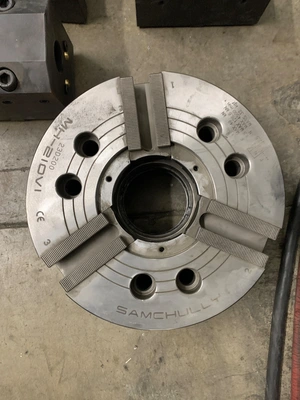

Chuck Size 8.3 in 210 mm
Spindle Nose A2-5 A2-5
Drive System Direct Speed, Belt Drive Direct Speed, Belt Drive
Max Rating 15.0 hp 11.2 kW
Max Speed 4000 rpm 4000 rpm
Max Torque 100.0 ft-lbf @ 870 rpm 135.6 Nm @ 870 rpm
Chuck Throat Ø 2.00 in x 1.95 in DEEP Ø 50.8 mm x 49.5 mm DEEP
Drawbar Adapter Bore Ø 1.81 in x 4.52 in DEEP Ø 46.0 mm x 114.8 mm DEEP
Drawbar Bore (NON-THROUGH) Ø 1.03 in x 5.00 in DEEP Ø 26.2 mm x 127.0 mm DEEP
Spindle Bore (without chuck and drawbar installed) 2.31 in 58.7 mm

SECONDARY SPINDLE C AXIS S.A.E METRIC
Max Rating 5.0 hp 3.7 kW
Max Speed 60 rpm 60 rpm
Positioning (±) 0.01 ° 0.01 °
Brake Diameter 8.5 in 216 mm
Brake Holding Torque 140 ft-lbf 190 Nm
Control Type Interpolated Motion and Positioning Interpolated Motion and Positioning

SECONDARY SPINDLE POSITIONING (M119) S.A.E METRIC
Positioning (±) 0.02 ° 0.02 °
Brake Diameter 8.5 in 216 mm
Control Type Positioning Only Positioning Only

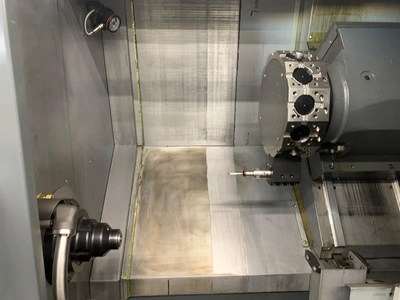

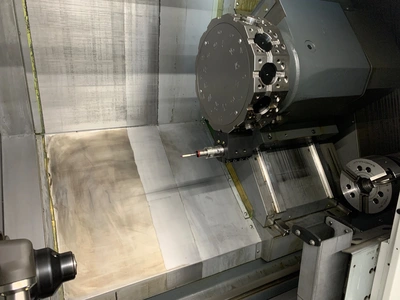

TURRET S.A.E METRIC
Number of Tools 12 Stations 12 Stations
OD vs ID Tools Any Combination (will vary with turret) Any Combination (will vary with turret)
Boring Bar Rear Clearance (from back of turret ) 4.00 in 102.0 mm

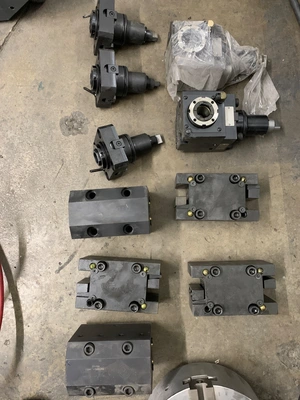

LIVE TOOLING S.A.E METRIC
Max Speed 4000 rpm 4000 rpm
Drive Ratio 1:1 1:1
Tooling BMT65 BMT65
GENERAL S.A.E METRIC
Coolant Capacity 55 gal 208 L

AIR REQUIREMENTS S.A.E METRIC
Air Required† 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar

ELECTRICAL SPECIFICATION S.A.E METRIC
Spindle Speed 4500 rpm 4500 rpm
Drive System Direct Speed, Belt Drive Direct Speed, Belt Drive
Spindle Power 30.0 hp 22.4 kW
Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 70 A 70 A
Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
Full Load Amps (3 Phase) - High* 35 A 35 A
DIMENSIONS - SHIPPING S.A.E METRIC
Domestic Pallet 171.0 in x 90.0 in x 98.0 in 434 cm x 229 cm x 249 cm
Export Pallet 171.0 in x 90.0 in x 98.0 in 434 cm x 229 cm x 249 cm
Weight 12200 lb 5533.9 kg
